Q-FP Series Portable Foldable LED Poster Display

  • All-in-One LED Digital Signage Solution

    LED Poster Displays should be positioned as a premium digital signage product, targeting retail, AV, exhibitions, and commercial display projects Enhance customer engagement, attract attention, and improve purchasing conversion.

    P1.25/P1.538/P1.86( GOB necessary) P2.5m GOB Optional


    Foldable Dual-Sided Screen Design

    Die-Cast Aluminum Cabinet

    Seamless Splicing Experience

    Smart Cloud Control Management

    Flight Case with 2in1

    Simple Front Maintenance

    Application: Indoor


    Learn More









Q-FP Series

Foldable LED Poster Display,P1.25, P1.538 (GOB Necessary), P1.86, P2 ,

P2.5mm (GOB Optional)

Screen size is 640x1920mm


                                Led Poster

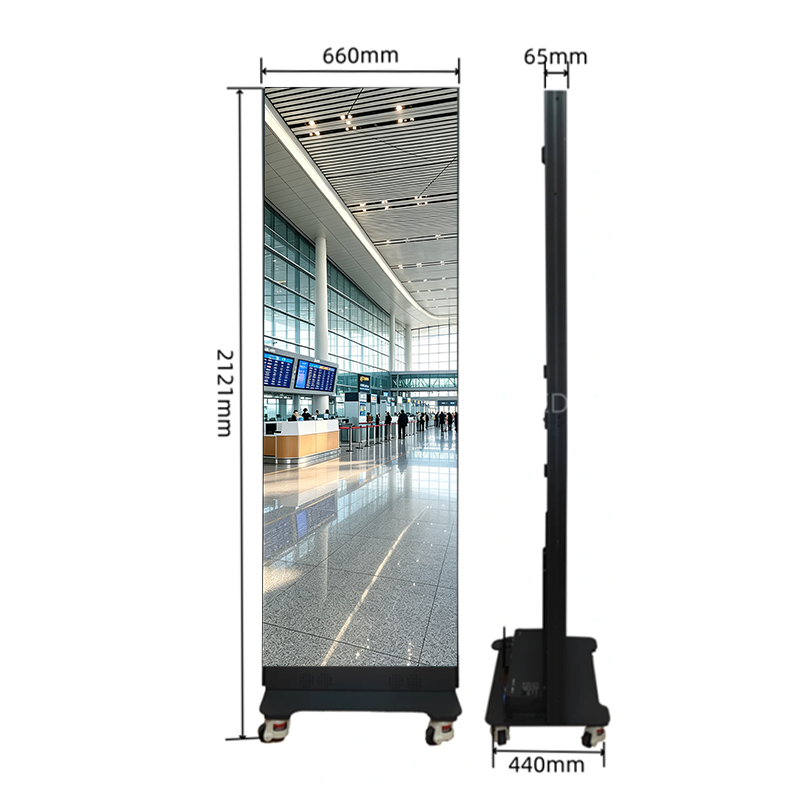

Led poster for airport











Cabinet size

   640*1920mm

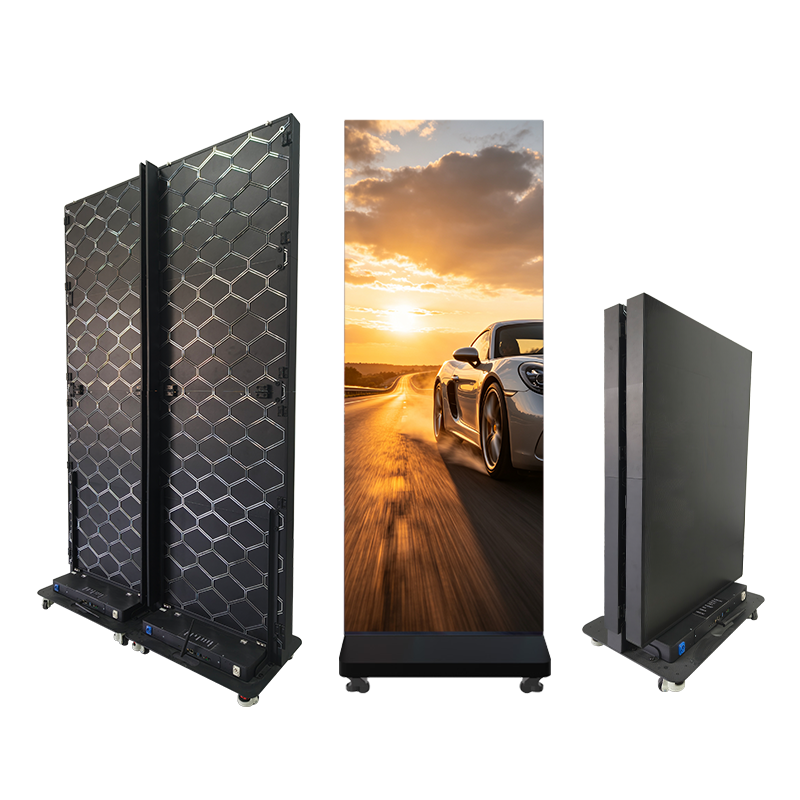

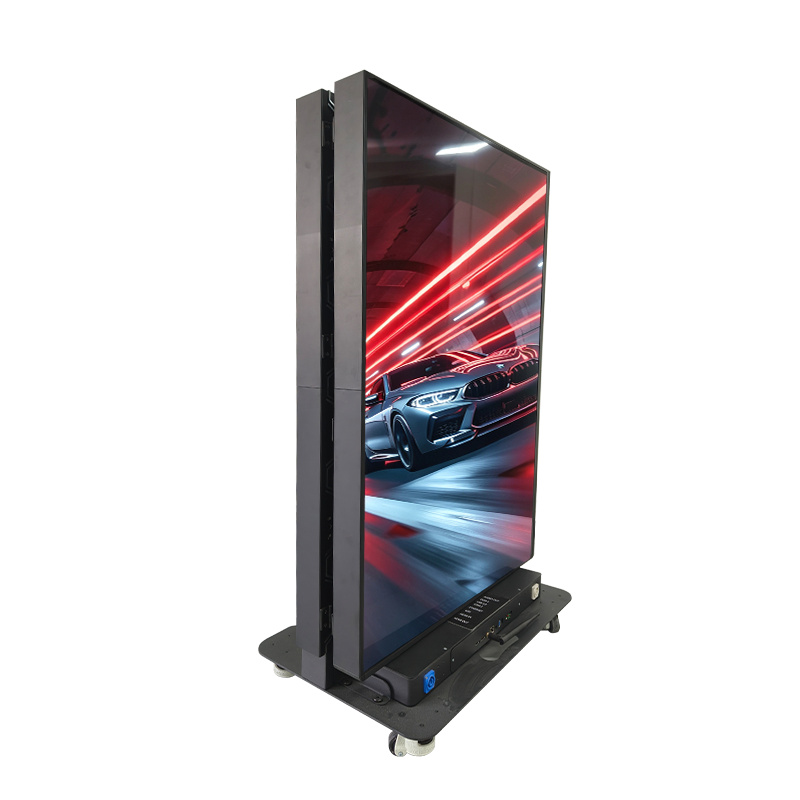

Foldable Double-Sided Led Display

Supports folding, small size, easy storage, convenient transportation



            Foldable led poster



Advertising for stage






Support Seamless Splicing of

Multiple Units

It can be used as a single device and also supports seamless splicing of

multiple devices into a large screen,with a wider range of

application scenarios











Universal Wheel Design

Comes with 4 swivel wheels, making it easier to move and place

wherever you  want.

Durable casters with adjustable leveling feet enable effortless mobility

and precise positioning, making it easy to align multiple displays

for seamless splicing.



       Front service led poster P1.86

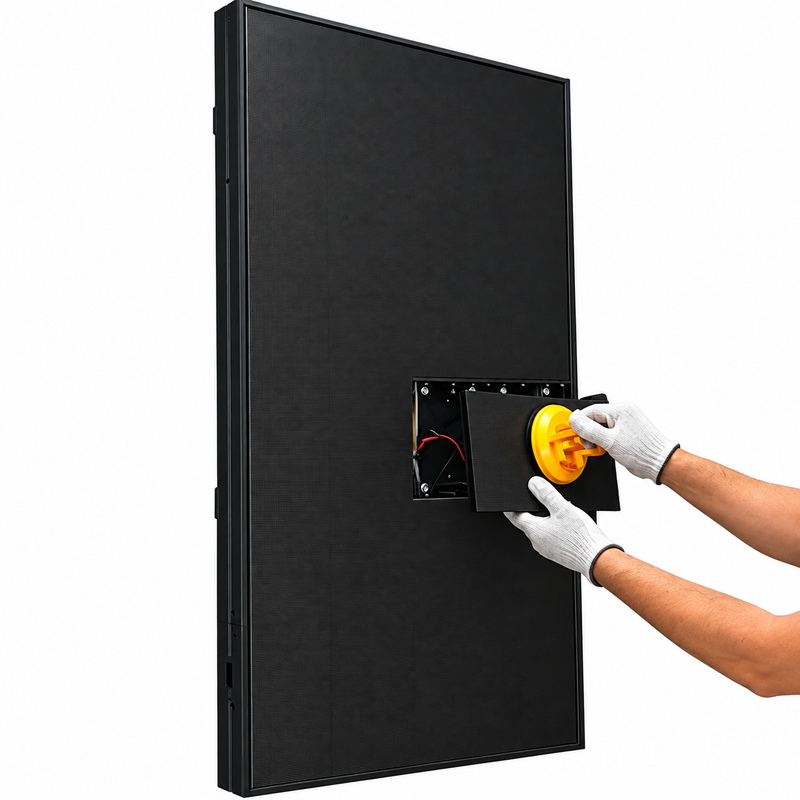

Front Maintenance




Full Front Maintenance Design

The Q-FP Series adopts a magnetic module design, allowing LED modules

to be quickly installed and removed with ease, without the need for

complex tools.

Featuring full front access maintenance, the display enables convenient servicing directly from the front side, eliminating the need for rear access.

 This design significantly improves maintenance efficiency, reduces downtime, and provides a more user-friendly installation and service experience.

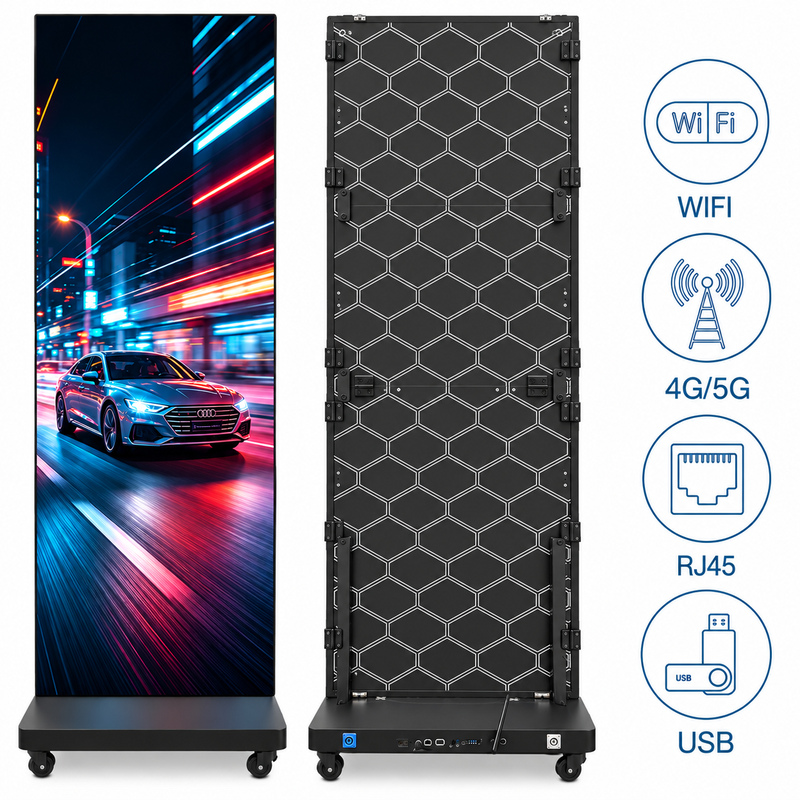

Supports multiple transmission methods

The device comes standard with USB flash drive, WiFi, Ethernet port, HDMI ,

 and wireless 4G.

Enjoy effortless content management with multiple control options,

including PC software, mobile apps, and USB drives,

Providing a flexible and user-friendly operation experience.





Application Case

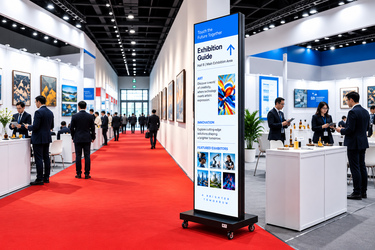

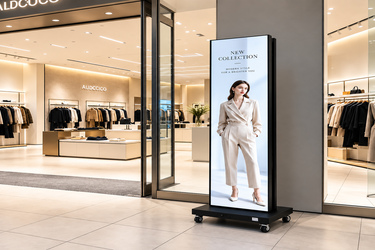

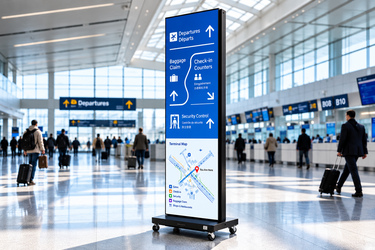

information billboardExhibitionShopping mall

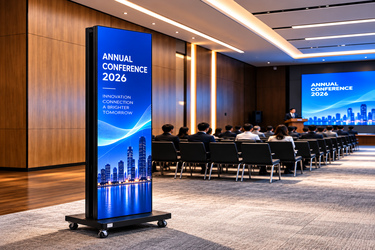

conference

                      Airport                         Exhibition                           Retail Store                      Conference


Parameters for Q-FP Series

Pixel Pitch1.25mm1.53mm1.86mm2mm2.5mm
LEDGOBGOBGOBGOBGOB or SMD2020
Module Resolution256*128dots208*104dots172*86dots160*80dots128*64dots
Module Size 320*160mm320*160mm320*160mm320*160mm320*160mm
Screen Size 640*1920mm640*1920mm640*1920mm640*1920mm640*1920mm
Cabinet MaterialMagnesium AlloyMagnesium AlloyMagnesium AlloyMagnesium AlloyMagnesium Alloy
Cabinet Weight58KG58KG58KG58KG58KG
Maintenance TypeFront ServiceFront ServiceFront ServiceFront ServiceFront Service
Scan Mode1/641/521/431/401/40
Max. Power Consumption 550W/m2550W/m2550W/m2550W/m2550W/m2
Average Power Consumption 180W/m2180W/m2180W/m2180W/m2180W/m2
Brightness 600nits600nits600nits600nits800nits
Viewing Angle 160°/160°160°/160°160°/160°160°/160°160°/160°
Refresh Rate 3840Hz3840Hz3840Hz3840Hz3840Hz
Gray Scale ≥16bit≥16bit≥16bit≥16bit≥16bit
Working Temperature-20°~50°C-20°~50°C-20°~50°C-20°~50°C-20°~50°C
IP RatingIP40IP40IP40IP40IP40
