Q-Sport S Series

Designed for stadiums and sports venues
This high-performance LED display delivers clear, dynamic visuals for live events while creating powerful opportunities for advertising and brand exposure.

Pixel Pitch for:P4mm/5mm/6.67mm/8mm/10mm
Cabinet Size:960*960mm
Brigntess: 4000-5500nits.
Application:Outdoor

Learn More

Product Details
Specification

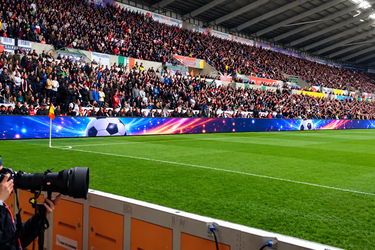

Stadium Perimeter LED Display

Pixel Pitch : P4/P5/P6.67/P8/P10
Cabinet Size: 960x960mm with aluminum alloy
High Brightness & High Refresh Rate & Wide Viewing Angle
Excellent Visual Performance.

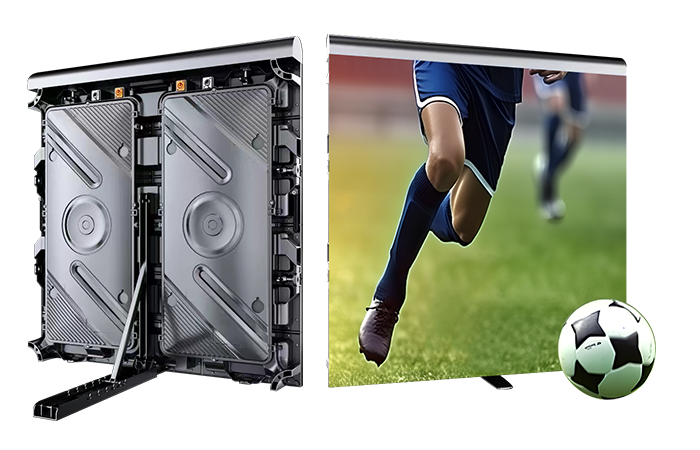

Soft masks to protect athletes
Soft pillow to protect the athletes
Stability & Reliability
Safe & Convenient

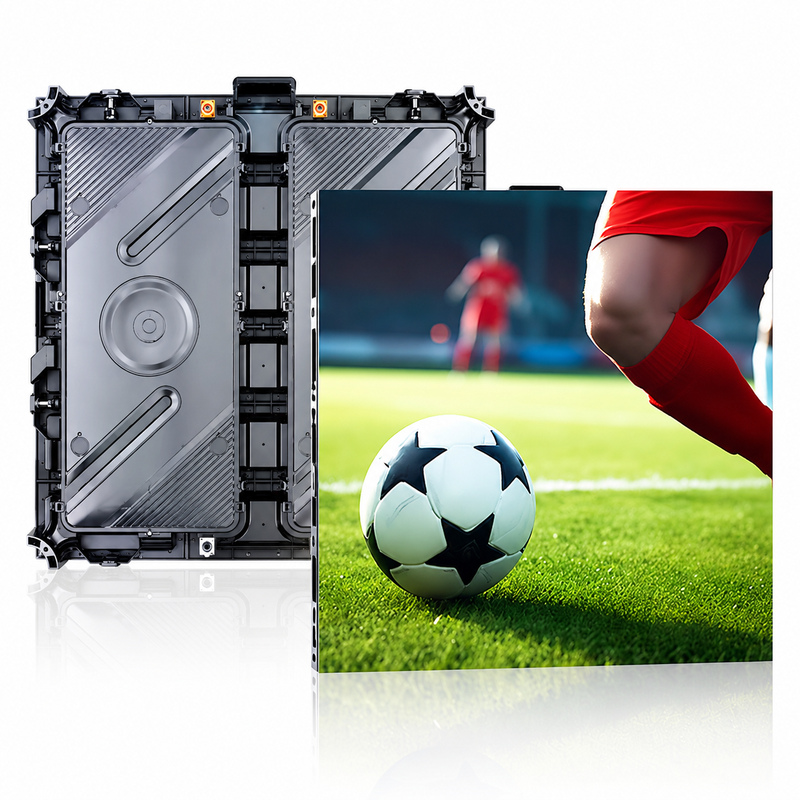

Stadium led display led screen

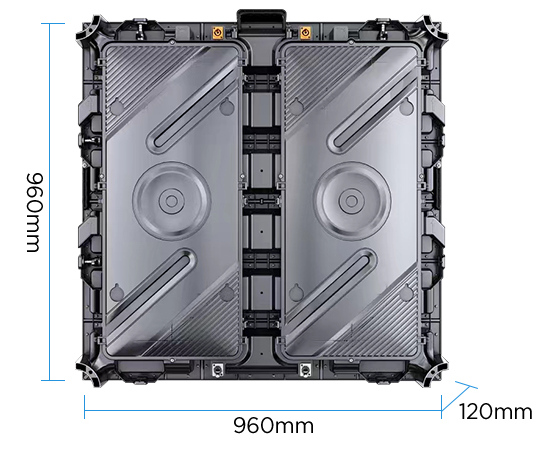

Cabinet Details

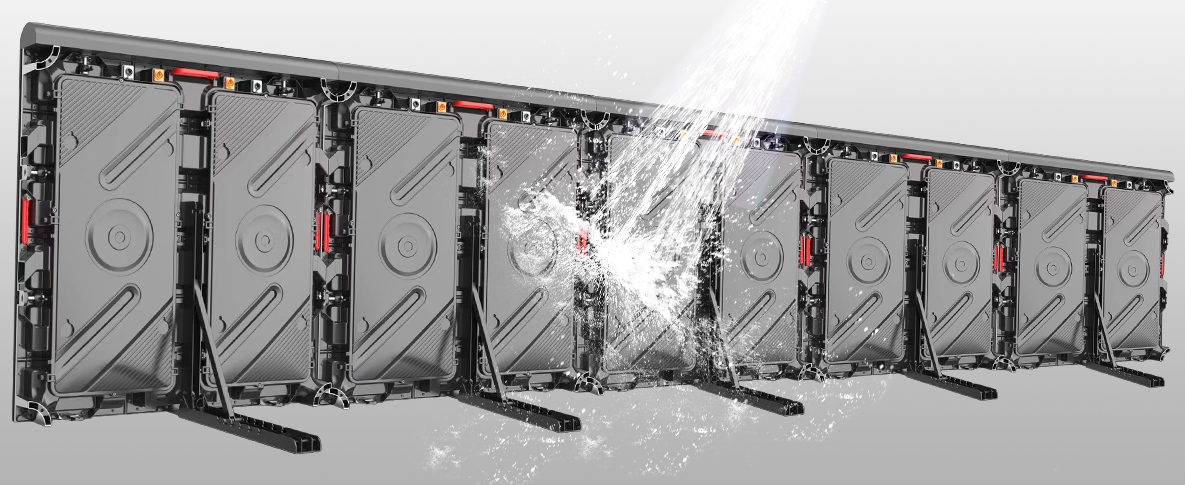

IP65 Protection Grade

High protective
Outdoor waterproof is durable for all kinds of bad weather

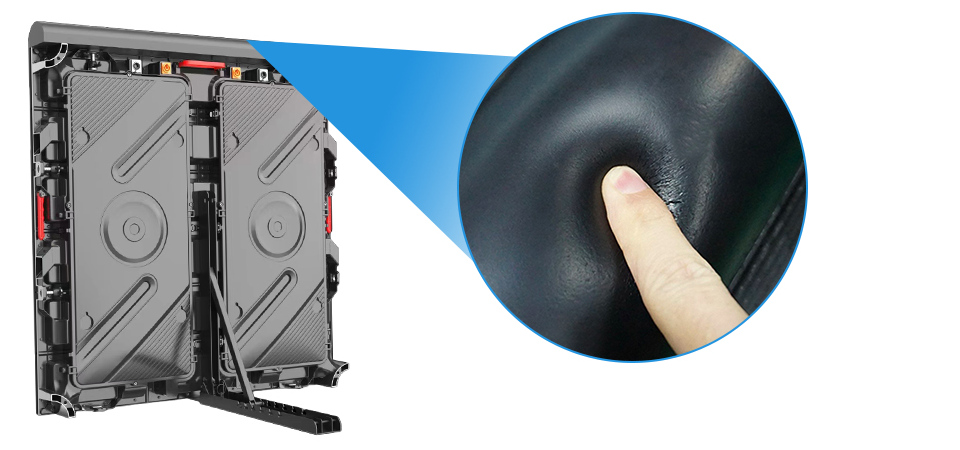

Soft Pillow

Protect athletes to get hurt against the screen

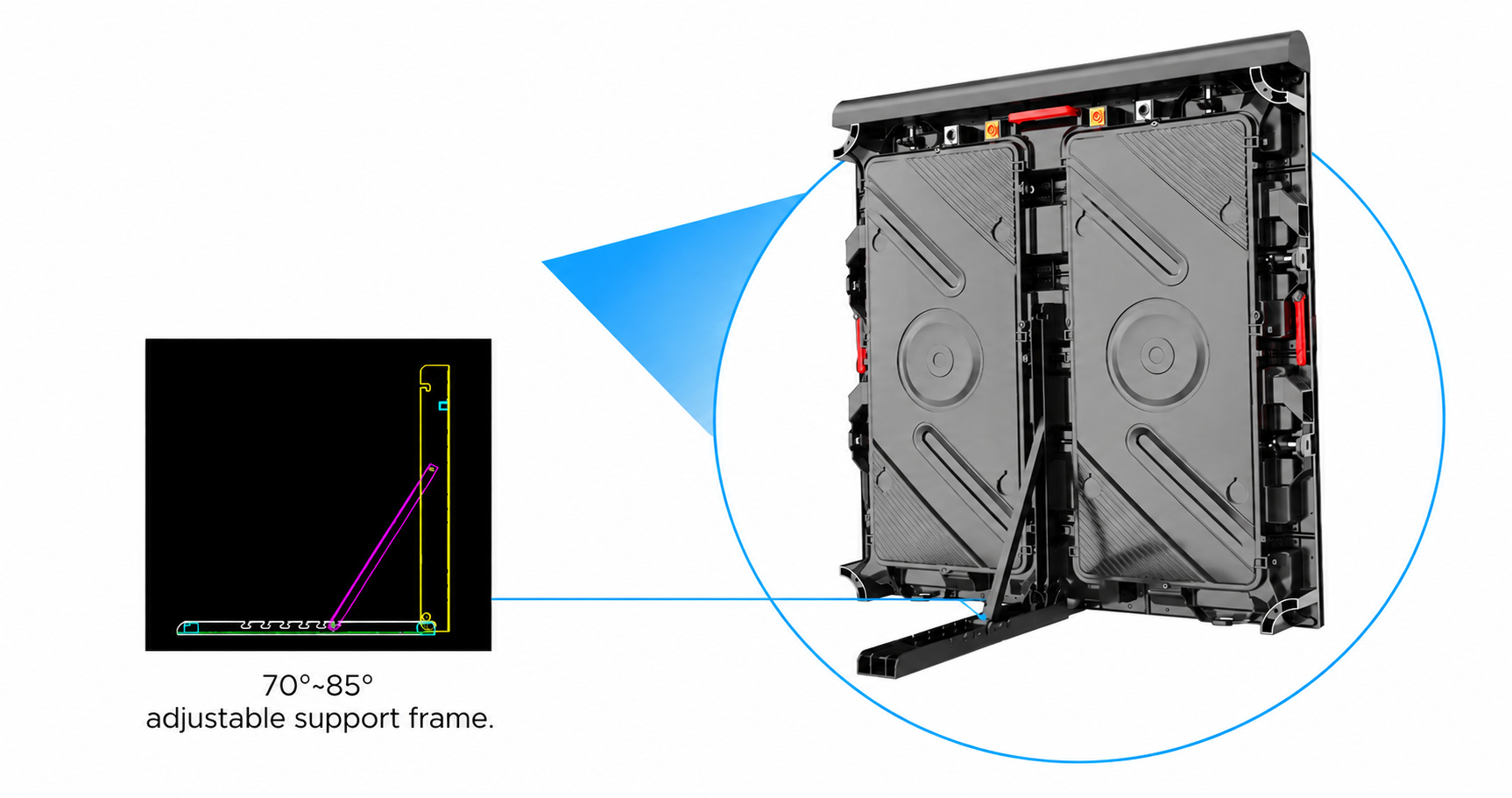

Angle Adjustable

For a superior visual effect

Sport stadium led display

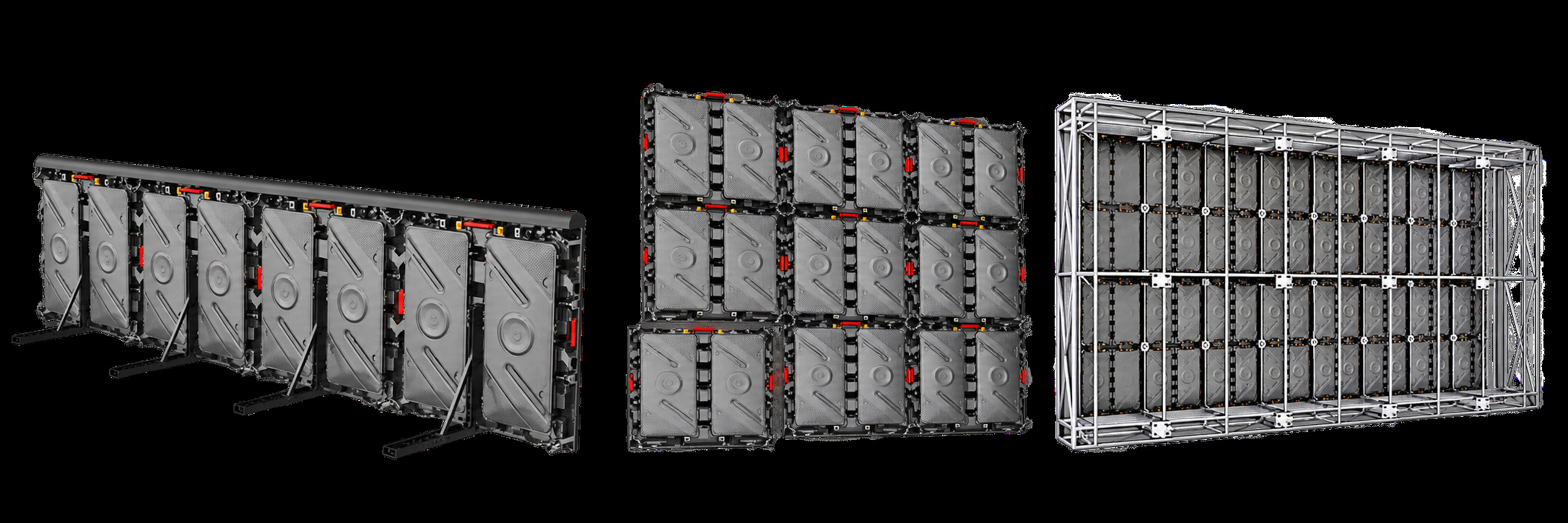

Multiple Installation

Q-Sport S Series is widely used as outdoor advertising screens, stage rental screens, and stadium perimeter LED display screens

Application Case

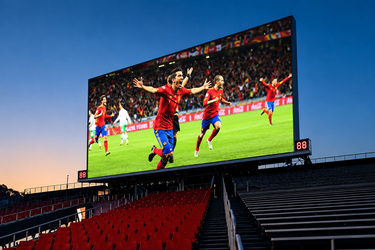

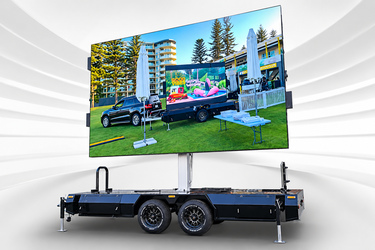

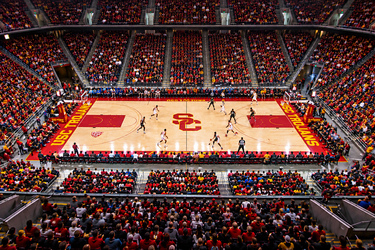

Mobile trailer	Advertising	Football Stadium	Basketball Stadium

Parameters for Q-Sport S Series

Pixel Pitch	4mm	5mm	6.67mm	8mm
LED	SMD1921	SMD1921	SMD2727	SMD2727
Module Resolution	80*40dots	64*32dots	48*24dots	40*20dots
Module Size	320*160mm	320*160mm	320*160mm	320*160mm
Cabinet Size	960*960mm	960*960mm	960*960mm	960*960mm
Cabinet Material	Die-Casting Aluminum
Cabinet Weight	28KG
Maintenance Type	Back Service	Back Service	Back Service	Back Service
Scan Mode	1/10	1/8	1/6	1/5
Max. Power Consumption	780W/m2	780W/m2	780W/m2	780W/m2
Average Power Consumption	230W/m2	230W/m2	230W/m2	230W/m2
Brightness	5500nits	5500nits	5500nits	5500nits
Viewing Angle	120°/120°	120°/120°	120°/120°	120°/120°
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz
Gray Scale	≥14bit	≥14bit	≥14bit	≥14bit
Working Temperature	-20°~50°C	-20°~50°C	-20°~50°C	-20°~50°C
IP Rating	IP65	IP65	IP65	IP65
