Q-Stage Pro Series

500 × 500 mm Indoor & Outdoor Rental LED Display
Built for the demands of rental and staging, this LED display combines lightweight design, quick installation and flexible flat or curved configurations. Ideal for indoor and outdoor events, concerts, exhibitions and touring productions.

Pixel Pitch for indoor :P1.56/P1.9/P2.6
Pixel Pitch for Outdoor: P1.9/P2.6/P2.97/P3.91
Cabinet Size:500*500mm& 500*1000mm
Brigntess: Indoor 600-800nits, outdoor 4500nits.
Application:Indoor &Outdoor

Learn More

Product Details
Specification

Q-Stage Pro Series

For Indoor&Outdoor

All Usability in One

A cost-effective rental solution for any event

500x500mm &500x1000mm optional
Indoor P1.9/P2.6/P2.97/P3.91
Outdoor P2.6/2.97/3.91
High refresh rate
Front and back service options for quick maintenance.
Mutiple application, creative display

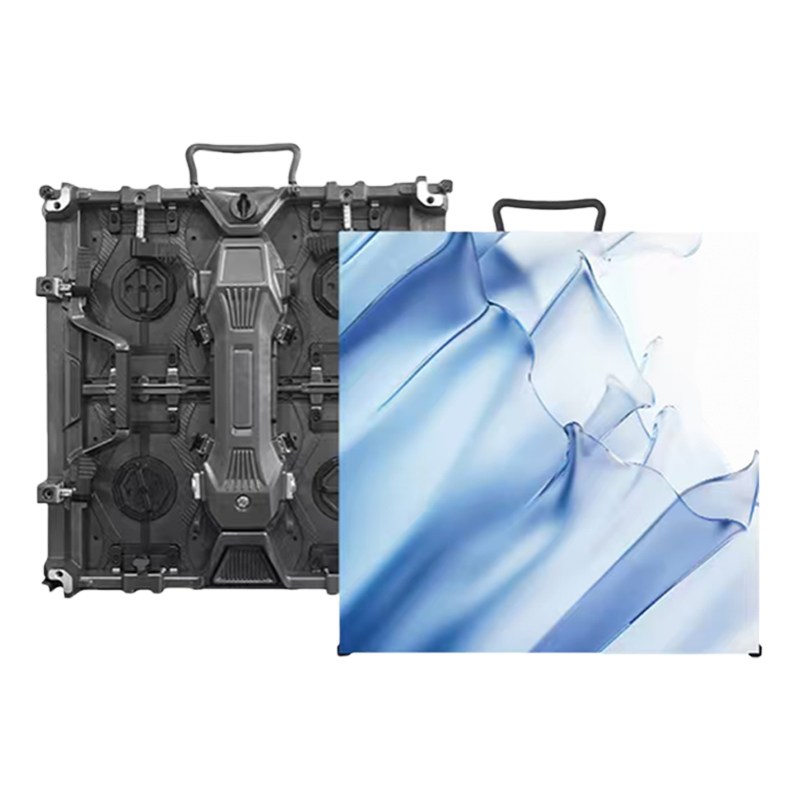

Rental led display for stage

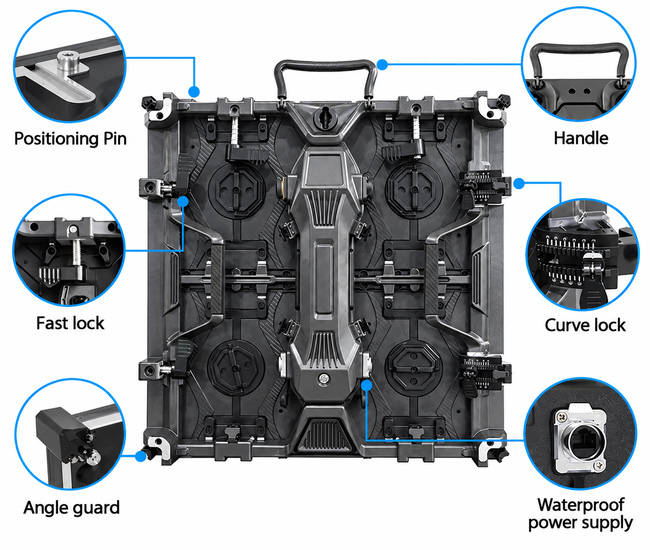

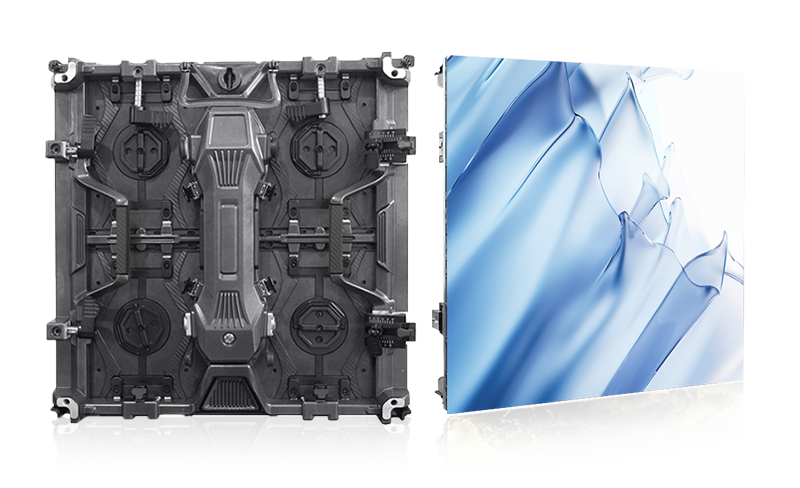

Cabinet Details

High precision cast aluminum cabinet
Light weight, 500 * 500 ≤ 7.5KG/cabinet,
Thickness is only 90mm;

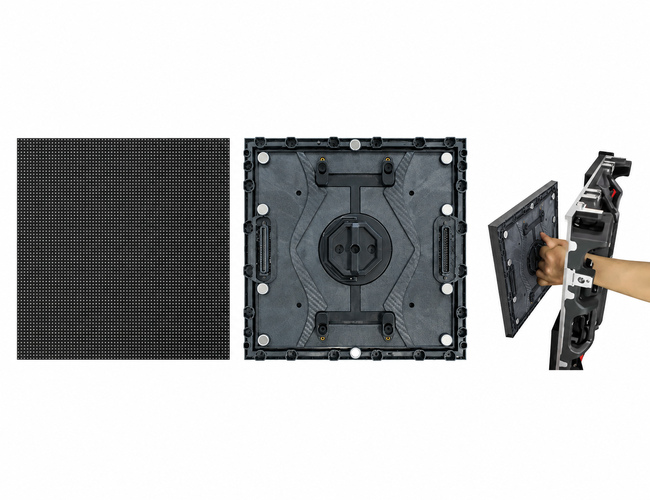

Magnetic Panel System

Easy Maintenance design
No A /B modules
No need to judget left /right side

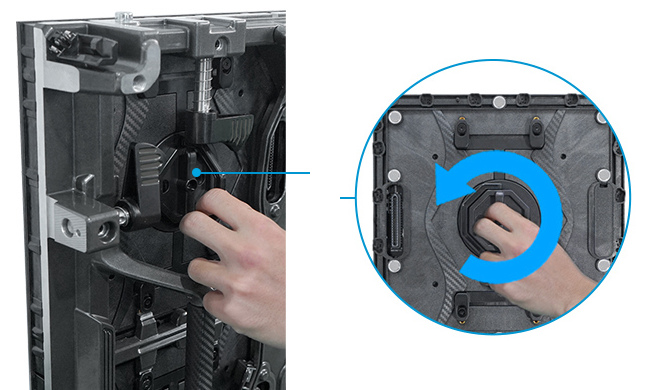

Module Handle &Lock

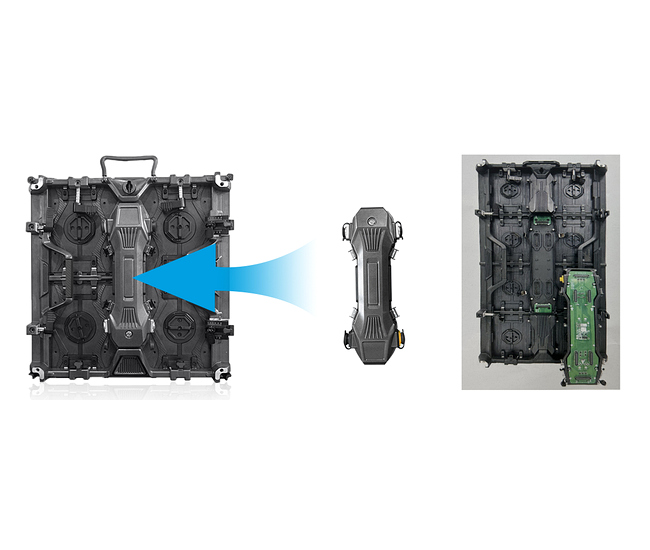

Indepent Power Box with Easy Replacement

One-touch rotary unlock

Independent Power Box

with Easy Replacement

Fast changable modular control box design with board to

board connectors increase service efficiency a lot.

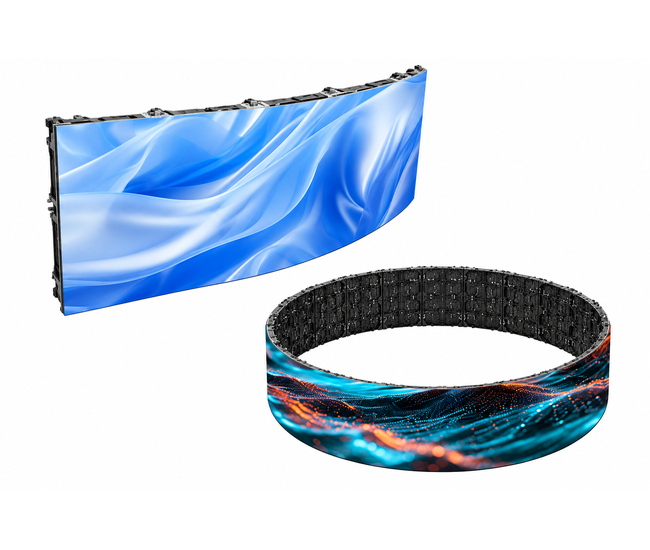

Flexible Rental led display.jpg

Optional Curve Screen -10°~+15°

The optional precision arc lock enables accurate

and seamless curved configurations with cabinets,

offering greater flexibility for stage, exhibition,

and creative event applications.

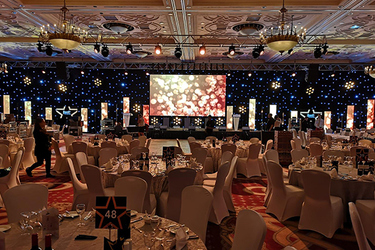

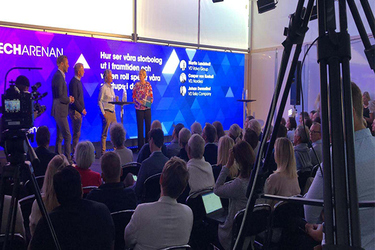

Application Case

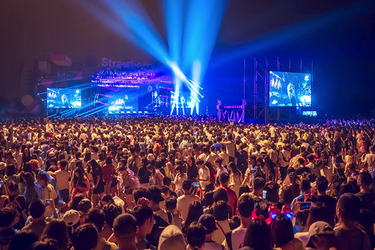

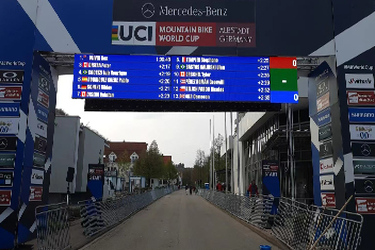

Events	Meeting	Party	Sports

Parameters for Q-Stage Pro Series

Pixel Pitch	1.56mm-indoor	1.9mm-indoor	2.6mm-indoor	1.9mm-outdoor	2.6mm-outdoor	2.97mm-outdoor	3.91mm-outdoor
LED	SMD1010	SMD1515	SMD1515	SMD1515	SMD1921	SMD1515	SMD1921
Module Resolution	160*160dots	128*128dots	96*96dots	128*128dots	96*96dots	84*84dots	64*64dots
Module Size	250*250mm	250*250mm	250*250mm	250*250mm	250*250mm	250*250mm	250*250mm
Cabinet Size	500*500mm	500*500mm	500*500mm	500*500mm	500*500mm	500*500mm	500*500mm
Cabinet Material	Die-Casting Aluminum
Cabinet Weight	7.5KG
Maintenance Type	Front Service	Front Service	Front Service	Front Service	Front Service	Front Service	Front Service
Scan Mode	1/27	1/32	1/24	1/32	1/24	1/21	1/16
Max. Power Consumption	500W/m2	500W/m2	500W/m2	680W/m2	520W/m2	520W/m2	520W/m2
Average Power Consumption	170W/m2	170W/m2	170W/m2	230W/m2	180W/m2	180W/m2	180W/m2
Brightness	600nits	600nits	600nits	3500nits	4500nits	4500nits	4500-5000nits
Viewing Angle	120°/120°	120°/120°	120°/120°	120°/120°	120°/120°	120°/120°	120°/120°
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz
Gray Scale	≥14bit	≥14bit	≥14bit	≥14bit	≥14bit	≥14bit	≥14bit
Working Temperature	-20°~50°C	-20°~50°C	-20°~50°C	-20°~50°C	-20°~50°C	-20°~50°C	-20°~50°C
IP Rating	IP40	IP40	IP40	IP54	IP65	IP65	IP65
